CX 00 S1 | CX 00 S1 | Automatic unstitching machine
Automatic unstitching machine that allows to stich out the thread from the fabric, after the dyeing process. It is positioned just before the openrope machine and synchronized with its speed.
Unstitching with superior performance
The automatic unstitching machine, installed on the customer's rope-opener, allows the thread of the fabric to be rewound just dyed. It is used at the end of the dyeing process of stretch fabrics with lycra, and also for those woven fabrics where tubular dyeing is to be performed.
In fact, this process allows the selvedges to be fixed which would otherwise curl and be dyed badly.
In addition to protecting the good side of the fabric during dyeing
TECHNICAL FEATURES
✔ Thread rewinding up to 400 m/min, working speed up to 80 m/min
✔ Pneumatic spreading system to slide left and right the thread on the winding shaft
✔ Adjustable tension
✔ Asjustable speed
✔ Working ad fix speed or syncronized with the 0-10v analog signal of the rope opener

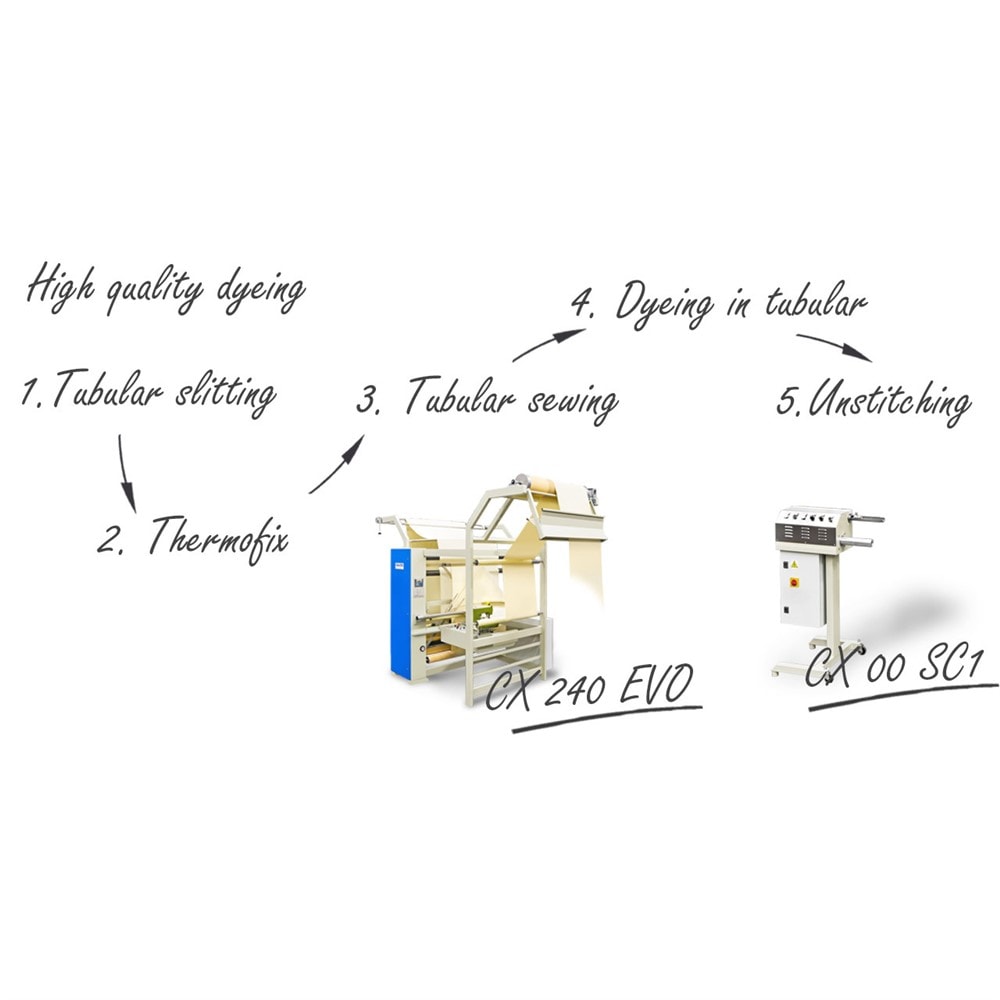

CX EVO + CX 00 SC1, the perfect combo

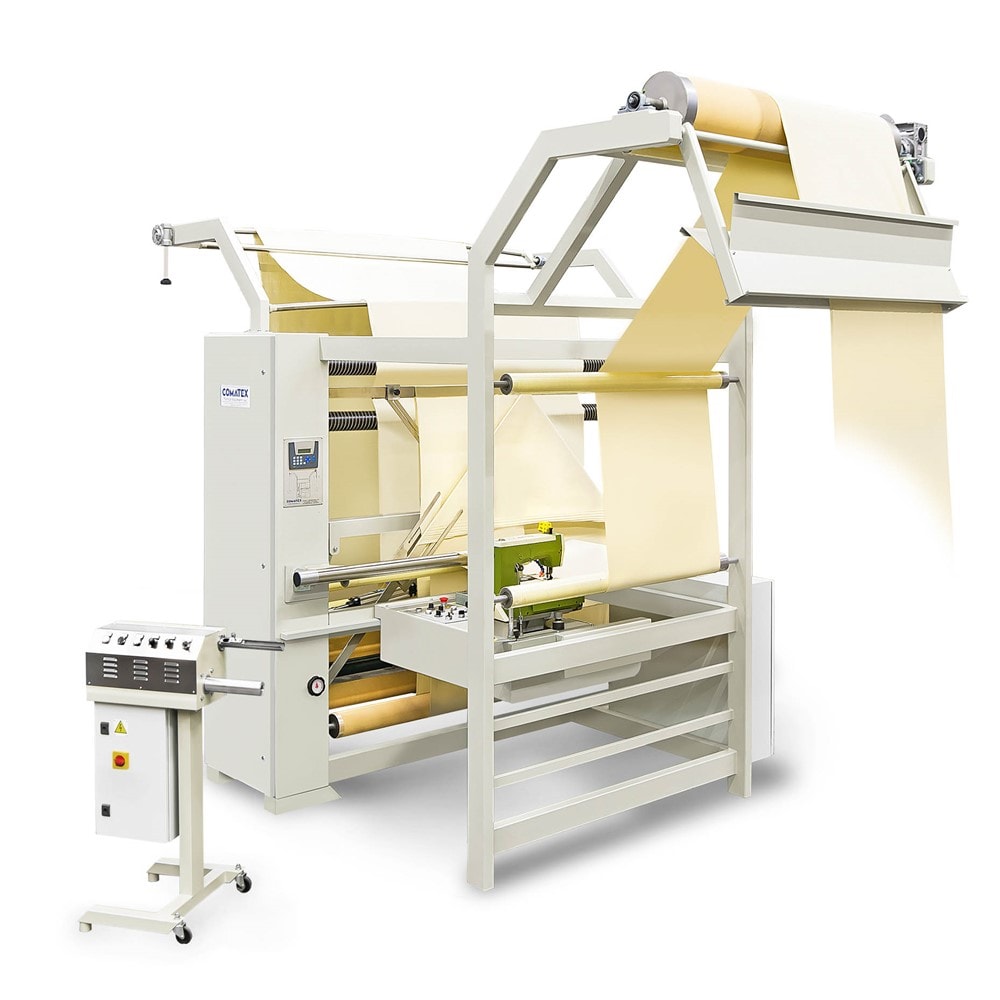

The machine mod. CX EVO is used to prepare the fabric for dyeing, performs doubling and tubular sewing of the fabric slitted and thermo-fixed by the rameouse.
Thanks to the perfectly aligned stitching a few millimetres from the edge:
✔ Solves dyeing problems in the centre of the fabrics
✔ Solves dyeing problems of curled selvedge
✔ Improves the final quality of the fabric and reduces waste
Evolution of the sewing machine model CX 220 CR is the result of over 30 years of experience, observation and a series of needs, requested by the market. The success was immediate and is confirmed six years after the first. In this period of time it has had several improvements while maintaining the standard of spare parts of the various mechanical and electronic components as well as a selvedge centre of our conception and patent, which guarantees the alignment of the same at 10mm from the joining point.
Processed products:
✔ Knitted fabrics
✔ Cotton-lycra
✔ Viscose
✔ Loom elastomers
✔ Elastics in general
✔ Wool in various types
