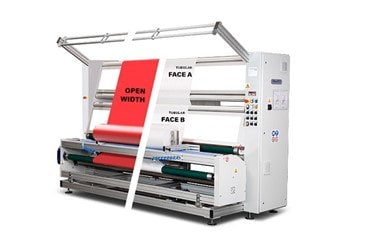

ISD is a high-performance machine for the inspection of tubular knitted fabrics using two inspection tables that allow you to see both sides of the fabric at the same time.

The fabric passes through the machine via a special path without mechanical twisting

Compared to the model with ISM mirrors; in the ISD model thanks to the double table system it is possible to change the width of the fabric without having to change the light tube

The fabric inspection is done on two layers at the same time (in the ISM mirror model it is possible to see single independent layers)

The machine is equipped with all the edge alignment systems, with an innovative meter counter system, which allow to produce high quality fabric rolls with excellent tension control.

SPECIAL STANDARD FEATURES

✔ Adjustable fabric tension
✔ Tubular fabric edge alignment
✔ Widening rings for fabric spreading
✔ Double table with dimmable LED lights
✔ Double light from above with dimmable LED lights

OPTIONS

✔ Meter counter
✔ Machine made also for open width fabric
✔ Entry or exit from plaited fabric
✔ PC with inspection and label printing software
✔ Entry sewing machine for joining the rolls
✔ Metaldetector

Like all our products, the machine can be customized according to the specific needs of the customer.
